Innovative solution for Adaptive radiotherapy
Aurora-RT combines a linear accelerator (Linac), with real-time (concurrent) Magnetic Resonance imaging to deliver cost effective adaptive radiotherapy to cancer patients.
Aurora MR Linac

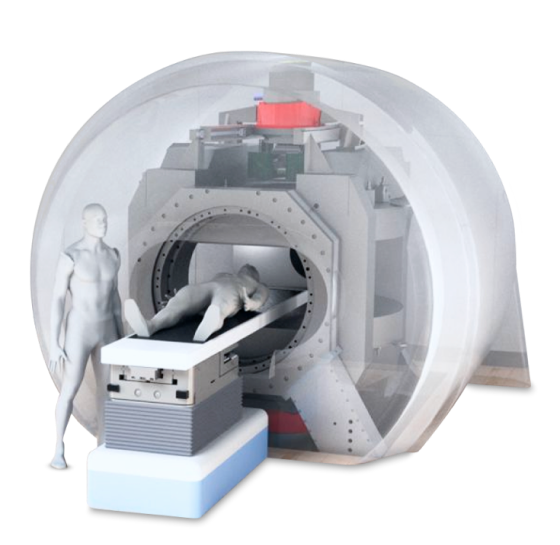

The Aurora RT™ is a MR Linac device that is far superior by design to anything available in the world today
The Aurora RT™ combines high quality MR images with a 6 MV linear accelerator.
The machine is designed to provide excellent images prior to treatment for accurate patient alignment, as well as real time MR imaging during beam delivery to allow advance gating of tumor tracking features.
This makes the Aurora RT™ uniquely suited for adaptive radiotherapy.
—Large Patient Opening 110 x 60 cm Bore
—Ability to make lateral shifts to treat isocentrically
—Open magnet minimizes claustrophobia
—Full 360 Degree Gantry Rotation
—Large Field Size (30 cm Circle)
—Full Resolution 5 mm leaves
—Ability to make lateral shifts to treat isocentrically
—Open magnet minimizes claustrophobia
—Full 360 Degree Gantry Rotation
—Large Field Size (30 cm Circle)
—Full Resolution 5 mm leaves

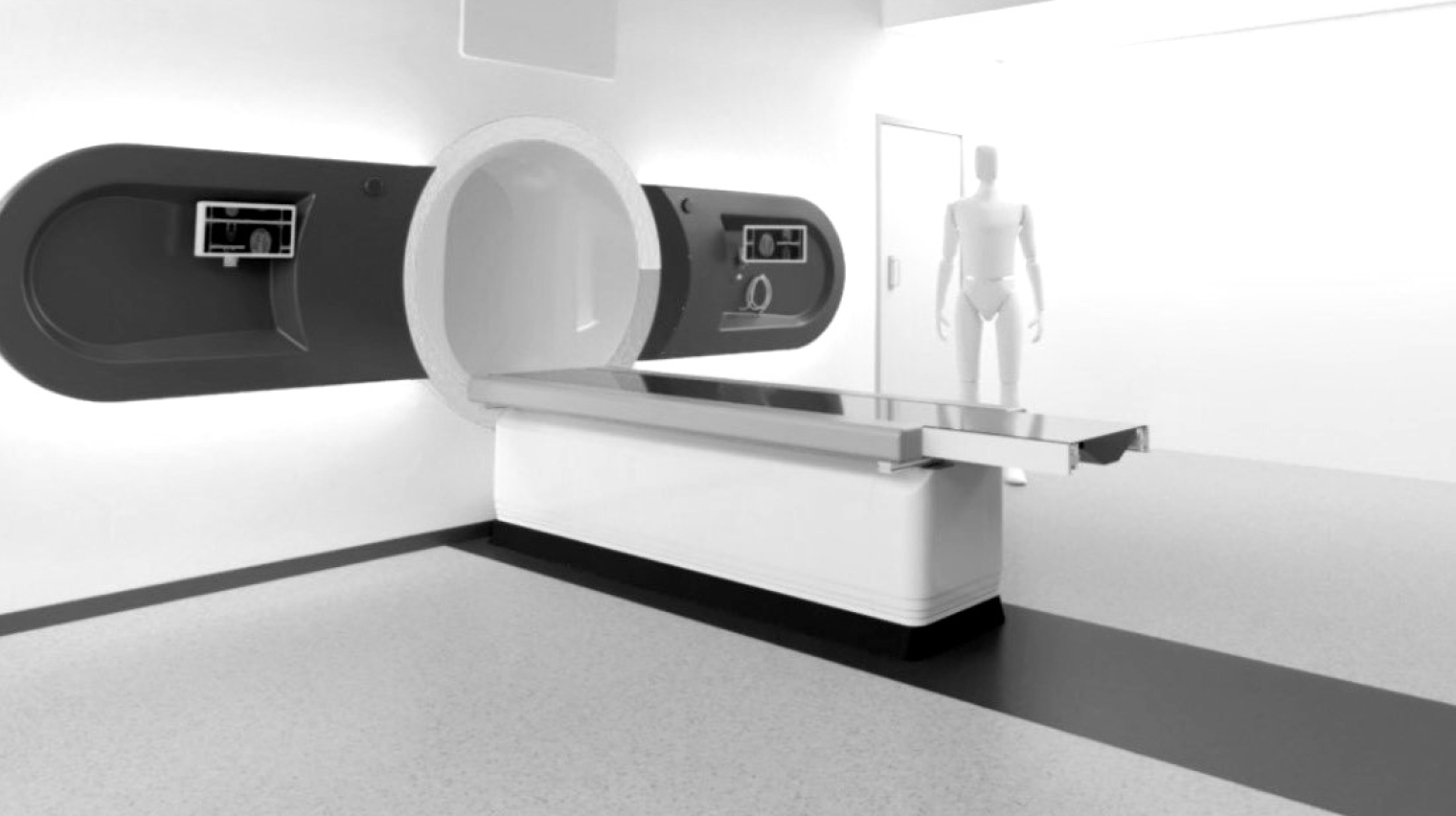

Introducing the Aurora RT
OPTIMAL MAGNETIC FIELD STRENGTH
Minimal Distortion
No ERE (no electron return effect)
High Contrast to Noise Ratio with 0,5 Tesla proprietary design magnet
No beam distortion nor ERE resulting from the parallel setting of the magnet and the beam generating device.
Optimal magnetic field strength
Proprietary design super conductive magnet, newest technology available
Introducing
THE
AURORA
RT
Optimal
MAGNETIC
FIELD
STRENGTH
— 120 Leaf
— 0.5 cm Leaves
— Double Focus
— 0.5 cm Leaves
— Double Focus

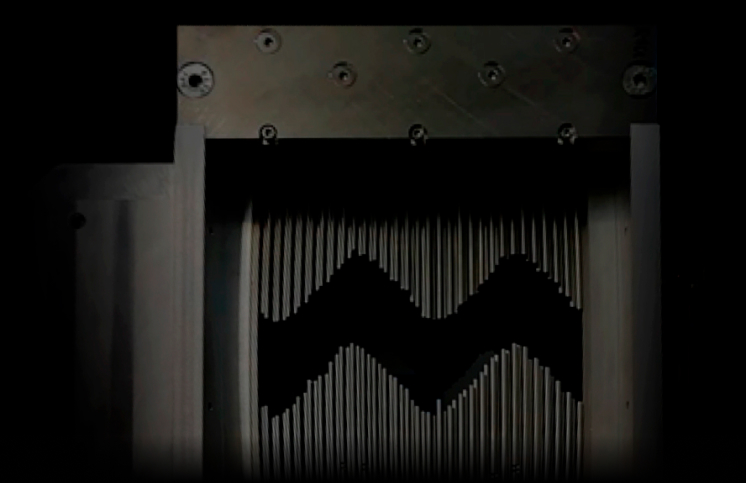

The outstanding design of the Aurora RT's 120 MLC
Minimum beam leakage and optimized conformality
The
OUTSTANDING
DESIGN
OF
THE
AURORA
RT'S
120
MLC
The Aurora RT™ can move patients’ side to side (laterally) allowing the treatment of peripheral tumors resulting in less damage to healthy tissue and a more accurate treatment.
Standard breast treatments and peripheral tumors
The ability to laterally adjust a patient is crucial to treat all types of cancer in an efficient manner, broadening the clinical scope of Aurora RT
Significant improved precision will allow additional clinical indications that are conventionally treated with radiation while reducing the side effects.
Highest quality real time MR imaging during beam delivery
Standard
BREAST
TREATMENTS
AND
PERIPHERAL
TUMORS
Highest
QUALITY
REAL
TIME
MR
IMAGING
DURING
BEAM
DELIVERY
Our 0.5 T MRI
Cone Beam CT

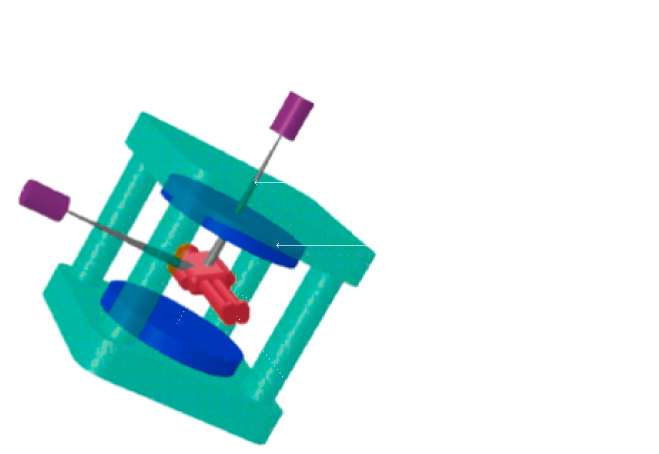

The Aurora RT™ can treat both parallel and perpendicular orientations
Peripheral treatment capability
Instead of just perpendicular with conventional cylindrical MR systems
Magnet Pole
Treatment beam
Linear accelerator
Parallel configuration
Perpendicular configuration
Peripheral
TREATMENT
CAPABILITY
Technical Specifications
Technical
SPECIFICATIONS
6 MV
Linac Energy
120 Leaves (standard, micro)
MultiLeaf Collimator (MLC)
0.5T
MR
110 cm W x 60 cm H
Patient Opening(braces)
Aligned – Rotate Together
Linac-MR Configuration
Rotates 360 degrees
MR Position
Parallel to Magnetic Field (minimal dosimetric perturbation)
Beam-Orientation
Standard for Linacs (installation through maze)
Bunker and Maze Size
None Required
MR Cryogens and Venting
IMRT, VMAT
Beam Modulation
Four images per sec
Soft-tissue Imaging Rate
Real-time Adaptive
Treatment Planning
Install Without Need to Remove Wall or Ceiling
No cryogens (helium), no cryogen vent required
No cryogens (helium), no cryogen vent required
Room size:
Depth: 5.9 M
Width: 5.9 M
Height: 3.6 M
0.5T Magnet
To be submerged in floor by 0.3 M
60 cm (net) bore
BENEFITS
For Patients
No claustrophobic feeling
Shorter time of treatment
Reduced side effects
Effective treatment of all moving organs
Shorter time of treatment
Reduced side effects
Effective treatment of all moving organs
Higher quality treatment
More patients treated
Reduced waiting lists
More patients treated
Reduced waiting lists
For Health System
Higher patient throughput drives reduced cost per treatment
Higher accessibility for more patients
Reduced capital investment
Creation of more treatment facilities
Higher accessibility for more patients
Reduced capital investment
Creation of more treatment facilities
For the Government
Clinical Features
1. Combination Linac and MRI scanner
2. Can do standard breast treatments
3. Larger bore / Effectively treats peripheral tumors
4. "No" Electron Return Effect (ERE)
5. Optimal magnetic field strength
Practical Features
1. No need for helium venting through concrete bunker walls
2. Can turn off magnetic field for servicing
3. Designed to be installed in standard treatment bunkers
4. Components brought in through standard maze
5. Regulatory Clearance (FDA)
Aurora
RT
VS
COMPETITION
Aurora RT vs Competition
Mr-Linac Z
Mr-Linac X
Aurora-RT Mr-Linac
Aurora-RT Mr-Linac
Mr-Linac X
Mr-Linac Z
Multiple installations worldwide already in planning
Multiple
INSTALLATIONS
WORLDWIDE
ALREADY
IN
PLANNING
expected 9-10/2021
expected 9-10/2021
Canada REFERENCE CENTER:
Enter the physics team at the University of Alberta.
About 100 papers published in 12 years on Linac-MR. (Elekta and Viewray reference Dr. Fallone work)
